•Shipping Weight: Hydraulic Unit: 86 lbs.

•Product Length/Depth: maximum 51" -minimum 49"

•Product Height: maximum 71" - minimum 23"

•(Lift range measured from top center of cradle to floor)

•Product Weight Capacity: 340 lbs.

•Folded Dimensions Height 17.7" - Depth 46.5" - Width 21.6"

•Spreader Bar Dimensions

•Max. Height 5' 4.5" - Min Usable Height 1' 3"

•Height @ Max Reach 3' 9" - Reach @ Max Height 2' 4" - Reach @ Min Height 1' 7"

•Max. Reach 2' 9"

•Turning Radius 3' 5"

•Leg Dimensions

•Open External Width 42.5"

•Open Internal Width 39.5"

•Closed External Width 25"

•Closed Internal Width 22"

•Overall Height of Legs 4.5"

•Front Twin Casters 3.3"

•Rear Braked Casters 4"

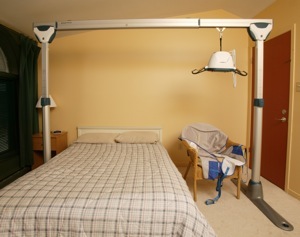

Portable Ceiling Track Lift

This portable track lift combines a solidly engineered design with features you would never expect to find in a portable. Its compact size, folding sling hooks and integrated carry handle make this lift a breeze to move from room to room. The lifting sling uses a loop system to securely connect it to the lifts carry bar. A variety of sling sizes and types are available to suit all needs.

Hammock Sling 6 Pt.

Ergofit Sling

Quick Fit Sling

Slings

Hygienic Sling

Folding Ramps

Single-Fold Ramps offer a reliable solution for transitioning curbs, thresholds and other obstacles. They are available in several different lengths and can accommodate a weight capacity of 600 lbs plus, lightweight Ramps are easily portable, making them ideal for home and travel.

Features & Benefits

•600 lbs. lifting capacity

•3-year transferable warranty

•Lightweight & portable

•Quick delivery, nationwide distribution

•Integrated, high traction surface

•Available in: 2’, 3’, 4’, 5’, and 6’

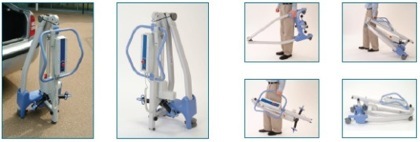

Patient Portable Lift

Features & Benefits

•The Advance lends itself to environments where space and storage are at a premium.

•Easy to Transport & Store - The Hoyer Advance can be folded, or separated for transportation.

•NO tools or special attachments to achieve its compact /folded position.

•Oversized handle for increased control

•Patent pending push footpad reduces the force needed to initiate movement

•Compact design

•Swan neck leg design accommodates large furniture

•Patent pending triangular folded design allows the lift to securely stand unaided

•All aluminum construction

•Foot operated leg spreading mechanism requires no bending to operate

Features & Benefits

Convenience

Safety

Lifting capacity

Aesthetics

Portability

Only weighs 6.5 kg. (14 lbs)

Lifting capacity of 200 kg / 440 lbs

Wide set sling hooks allow a more comfortable transfer for the patient.

An ergonomically designed handset and secondary controls mounted on the lift provide real convenience for the caregiver.

When it is time to charge it, simply plug it into the nearest outlet, the charger has been integrated into the lift.

Lift Chair

•3-Position Full Recline, Chaise Lounger

•Height Range: 5'9" - 6'2"

•Back Style: Blown Fiber Button Back

•Weight Capacity: 375 lbs.

•Seat Width: 22"

•Weight Capacity: 375 lbs.

•User Height Range: 5'9" - 6'2"

•Seat to Floor: 21"

•Seat Depth: 22" - Seat Width: 22"

•Top of Back to Seat: 25.5"

•Back Style: Blown Fiber Button Back

•Fully Padded Chaise: Yes

•Recline Positions: 3

•Heat & Massage Option: Yes

•Distance From Wall: 17.5"

•Overall Chair Width: 37"

•Chair Weight: 120 lbs.
