Turning Radius 20"

Maximum SpeedUp to 5 mph

Brakes Intelligent Braking (electronic, regenerative disc brakes)

Weight Capacity 300 lbs.

Overall Length 35.5"

Overall Width 25.125"

Ground Clearance 2.25"

Drive Wheels 14"

Caster Wheels 6" solid

Anti tip Wheels 6" solid

Drive Train In-line, 2 motor, Mid-Wheel 6

Suspension ATX Suspension (Active- Trac with extra stability)

Contoured Medium Back Seat Allowable Sizes 16" - 22"

Contoured High Back Seat Allowable Sizes 16" - 22" x 16" - 22"

Standard Electronics 75A Q-Logic NE, 75A Q-Logic NE+ 75A Q-Logic Drive Control System

Battery Two 12 volt, deep cycle NF-22

Standard Battery Charger 5A, Off-board charger

Range Per Charge Up to 13 miles

Battery Weight 38 lbs. (each)

Base Weight 121.5 lbs.

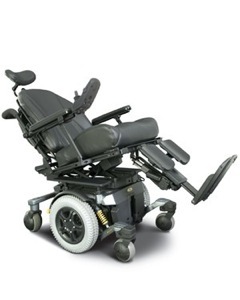

Q6000Z

Features & Benefits

•Powerful performance with enhanced torque and speed

•Excellent value

•Stylish, bold design

•Superb climbing and transitioning capability

•Solid track record of durability and customer satisfaction

•Highly maneuverable

•Compatible with an impressive array of electronics and seating and positioning systems

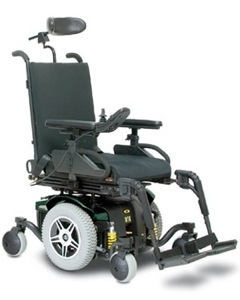

Quantum 614

Features & Benefits

•  Powerful dual in-line motors

•Sleek design provides excellent maneuverability

•Powerful electronics for exceptional handling

•Superb performance indoors and out

•Compatible with an impressive array of electronics and seating and positioning systems

Color Options Candy apple red, Viper blue, Onyx black, Champagne, Sunburst orange, Emerald green, Silver

Warranty Lifetime limited warranty on frame 2-year warranty on electronics 18- month warranty on drive motor

Color Options Metallic Red, Metallic Blue, Metallic Silver, Sunburst Orange, Metallic Black

Warranty Lifetime Limited on Frame; 2-Yr on Electronics; 18-Month on Motors

Turning Radius 22.5"

Maximum Speed Up To 6 MPH / 8 MPH with group 4 units

Brakes Intelligent Braking

Weight Capacity 300 LBS.

Overall Length 36" w/o Foot Riggings

Overall Width 25.875"

Ground Clearance 3.5"

Drive Wheels 14"

Caster Wheels 6" Solid

Drive Train 4-Pole 6 MPH, Mid-Wheel 6 or 4-Pole 8 MPH Motor

Suspension ATX w/ Dual Rear Strut

Contoured High Back Seat Allowable Sizes 24" X 24" Max.

Standard Electronics 70A, PG VR2 Controller

Optional Electronics 100A, Q-LOGIC Controller

Battery Group 3: Two 12 Volt Deep Cycle NF-22 Group 4: Two 12 Volt, Deep Cycle Group 24

Standard Battery Charger 5 AMP Off-Board

Optional Battery Charger 8 AMP Off-Board

Range Per Charge Up to 20 Miles

Battery Weight NF-22 38 Lbs. Each Group 24 53.5 Lbs. Each

Base Weight 147 LBS.

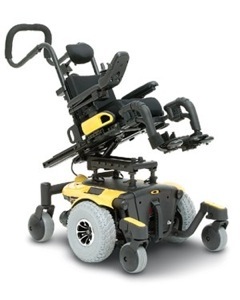

Q610 Pediatric

Features & Benefits

•Compact design for maximum maneuverability

•Powerful outdoor performance

•Excellent climbing and transitioning capability

•Proven reliability and high customer satisfaction

•Compatible with an impressive array of electronics and seating and positioning systems to keep up with a growing child’s needs

Turning Radius 21.25"

Maximum Speed Up To 4 MPH

Brakes Intelligent Braking

Weight Capacity 300 LBS.

Overall Length 34.75" w/o Foot Riggings; 39" w/ Swing Away Legrest

Overall Width 23.5"

Ground Clearance 2.5"

Drive Wheels 10" Pneumatic (std.) or 10" Solid (opt.)

Caster Wheels 6" Solid Omni-Casters Rear/5" Solid Omni-Casters Front

Drive Train 2-Pole Glide Motors, Mid-Wheel 6

Suspension Active-Trac (ATX)

Power Elevating Seat Yes

Contoured Medium Back Seat Allowable Sizes Width: 16" - 18" Depth: 16" - 18"

Contoured High Back Seat Allowable Sizes Width: 16" - 20" Depth: 16" - 20"

Contoured Seat with Power Elevating Seat STF Height TBD

Synergy Seat Allowable Sizes Width: 10" - 20" Depth: 10" - 20"

Synergy with Power Elevating Seat STF Height TBD

Synergy with Manual Tilt Allowable Sizes Width: 10" - 18" Depth: 10" - 18"

Accepts Specialty Controls YES

Standard Electronics 75 AMP Pride Flight

Optional Electronics 70 AMP PG VSI,70 AMP Q-Logic, 70 AMP PG Remote Plus, or 70 AMP PG Microdrive

Battery TWO 12-VOLT, U-1

Standard Battery Charger 5 AMP Off-Board

Optional Battery Charger 4 AMP ON/5 AMP Off Combo

Range Per Charge Up To 15 Miles

Battery Weight 24.5 LBS. each

Base Weight 112 LBS.

Color Options Champagne, Candy Apple Red, Viper Blue, Black Onyx, Sunburst Orange

Warranty Lifetime Limited on Frame; 2-Yr on Electronics; 18-Month on Motors

* Please note: The Quantum Series are not available for sales over the internet and are presented here for educational purposes only.
